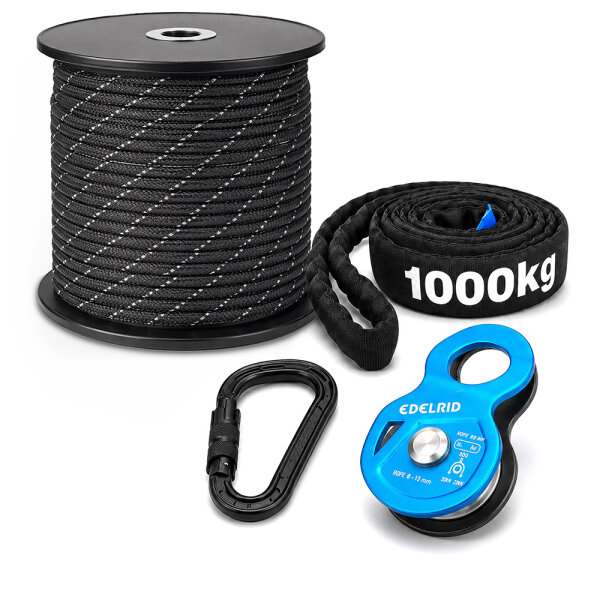

The 3D Tifo Standard Installation Set contains four coordinated components for setting up manually operated 3D tifo systems and movable stadium choreographies. The set is particularly suitable for constructions without aluminium poles, where banners, fabric elements or other lightweight tifo components need to be guided, redirected and secured using a rope system.
The set includes 5 round slings, each with a load capacity of 1,000 kg, 5 lightweight aluminium carabiners, 5 compact pulleys and 200 m of robust 3D Tifo premium rope with a diameter of 8 mm. This provides the essential components required for a stable anchoring point and controlled rope guidance in one practical package.

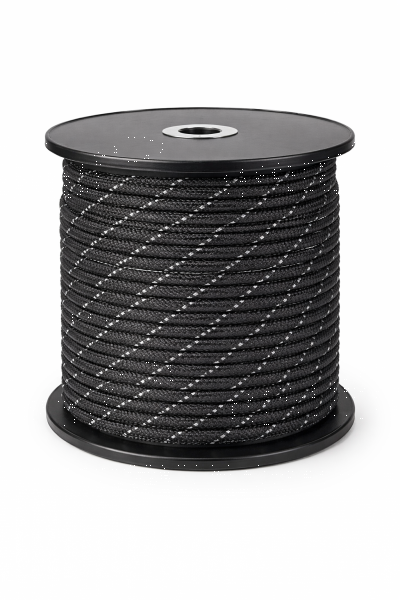

3D Tifo Premium Rope
The 3D Tifo Premium Rope is a high-quality static rope designed for demanding 3D tifo installations, large-scale choreographies and professional events.
With a diameter of 9 mm, a breaking load of 21 kN and low elongation, it provides a high level of stability and safety. Its robust kernmantle construction and Thermo Shield treatment ensure consistent rope performance, high abrasion resistance and pleasantly smooth handling.
A durable and reliable rope for professional applications involving high loads.

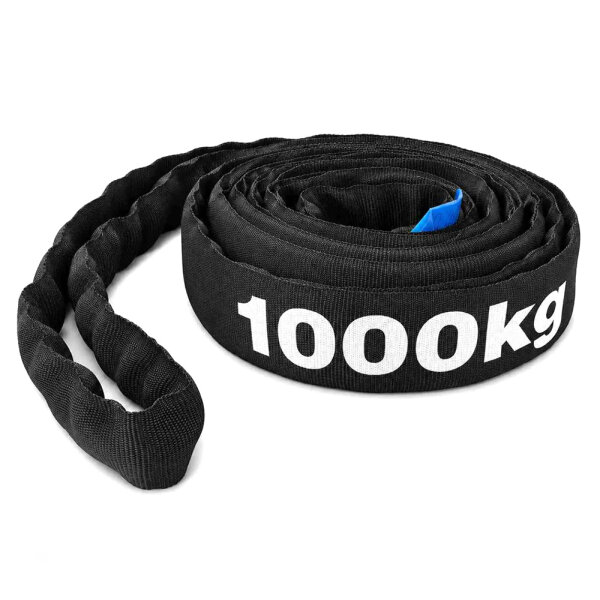

Round Sling with a Load Capacity of 1,000 kg
The 2-metre round sling consists of high-strength, continuously wound polyester fibres enclosed in a robust woven protective sleeve. Its flexible construction adapts well to different anchoring points and shapes and enables secure attachment while protecting the materials involved.
The round sling is manufactured in accordance with the requirements of EN 1492-2 and has a safety factor of 7:1. Depending on the application, it can be used in a straight, choker or basket configuration and is designed for a temperature range of −40 °C to +100 °C.

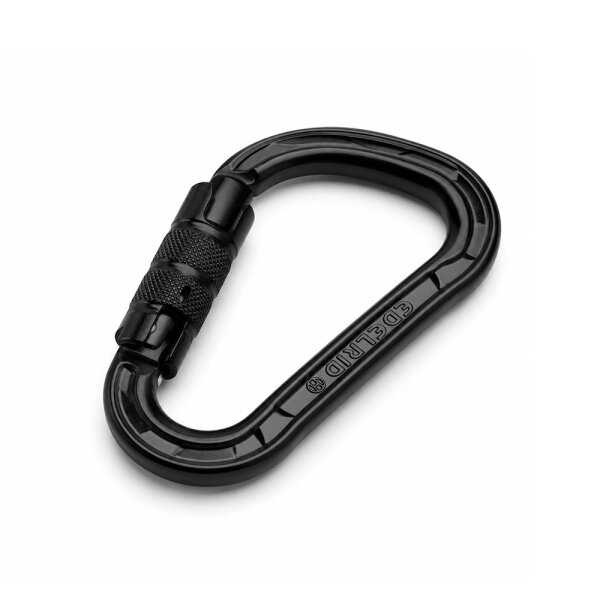

Lightweight Aluminium Carabiner
The aluminium carabiner serves as a reliable connecting element between the round sling, pulley and other components of the construction. Its low weight makes it particularly suitable for tifo systems with multiple connection points.
The 22 mm gate opening makes clipping and unclipping easier. The triple-locking mechanism, key-lock closure and large rope-bearing surface provide comfortable handling and reduce the risk of snagging.
The maximum load ratings are:
- 22 kN along the major axis
- 8 kN along the minor axis
- 7 kN with the gate open

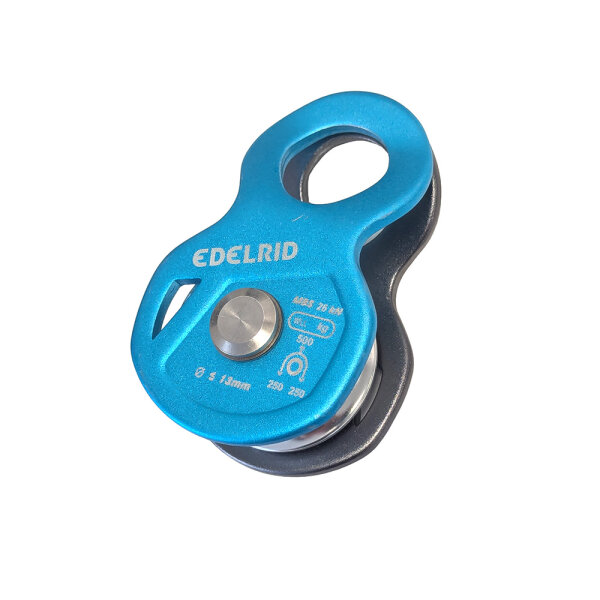

Compact Pulley for Controlled Rope Guidance
The lightweight aluminium pulley enables smooth, low-friction rope guidance. Its movable side plates allow it to be quickly installed in or removed from existing systems.
It is suitable for ropes with a maximum diameter of 13 mm and is therefore perfectly matched to the included 9 mm premium rope. The pulley supports the controlled movement, tensioning and positioning of banners and fabric elements within a 3D tifo construction.
Important Safety Information
The load capacity of the complete system is always determined by the weakest component used, the respective attachment method and the specific construction. Therefore, the round sling's load capacity of 1,000 kg does not automatically apply to the entire set. The included premium rope is intended for lightweight, manually operated 3D tifo systems and is not suitable for heavy loads or for lifting people.
All components must be inspected for damage, abrasion, deformation and wear before every use. The attachment points, rope lengths and required quantities must be selected according to the requirements of the individual project.
